John Guest Angle Stop Adapter Valve

This incoming water valve can accommodate either 1/4" or 3/8" tubes and is intended for use with water filtration systems, coffee brewers, ice makers, and more. It features a quarter-turn lever that makes it easy to turn the water on and off, and can be used on any standard 3/8" NPTF compression fitting.

John Guest's Speedfit products blend push-fit and multi-seal technology for a reliable leak-proof connection. Simple to install and uses less connectors than other methods to cut your installation time by 40%.

Details

• Durable design — this lightweight and durable shut-off valve is made of high-quality polypropylene for long-lasting performance and excellent chemical resistance
• No tools required — once installed on a water line, quick-connect fitting provides a simple, quick, and reliable leak-free connection with no tools required
• Push-fit technology allows for quick and easy disconnection without tools
• High chemical resistance
• EPDM seals
• Quarter-turn lever for easy shut-off
• For use with potable water, not suitable for air or inert gases

Additional

To connect to a water line, install between a pair of 3/8" female-male compression fittings. 5-6 wraps of Teflon tape can be used if necessary to avoid leaks.

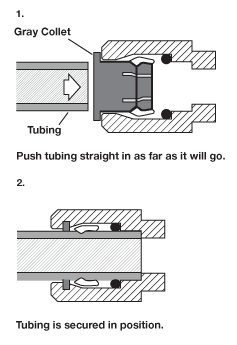

To connect tubing, first make sure that the tube is cut flat, and not at an angle. Push the tube into the fitting past the o-ring as far as it will go, approx. three-quarters of an inch.

To disconnect, push the collet into the fitting and hold it down as you pull out the tube.

To open, turn the lever parallel to the tube. To close, turn the lever perpendicular to the tube.
