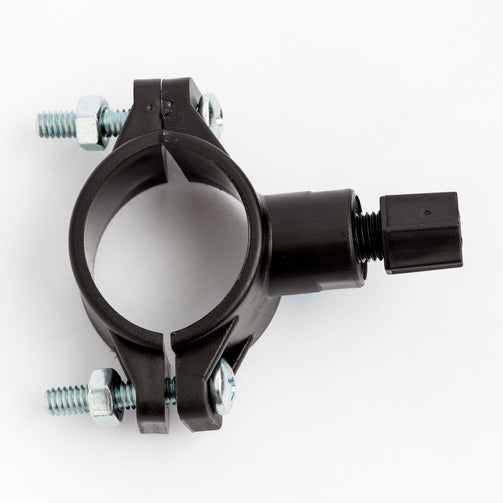

Drain Saddle Valve

Use a drain clamp (also called a drain saddle valve) to connect your reverse osmosis system drain port to a drain.

Your reverse osmosis system uses the drain to discard contaminants like lead, fluoride, nitrates, and sodium screened out by the membrane.

Drain clamps will normally be included with your reverse osmosis system.

The 1/4" valve is used for systems without an air-gap faucet, while the 3/8" valve is used for systems with an air-gap faucet.

Details

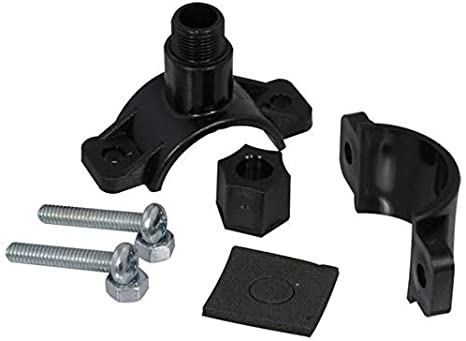

• Includes drain saddle valve, nuts, bolts, and sealing pad

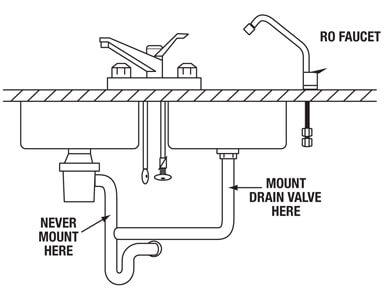

• Made to fit on drain line between p-trap and sink basin
• 1/4" or 3/8" connect fittings allows easy tubing connections
• 1/4" valve available with either compression or quick-connect
• Fits on drain pipes up to 1.5" in diameter
• Drain saddle valve used with reverse osmosis systems
